Description

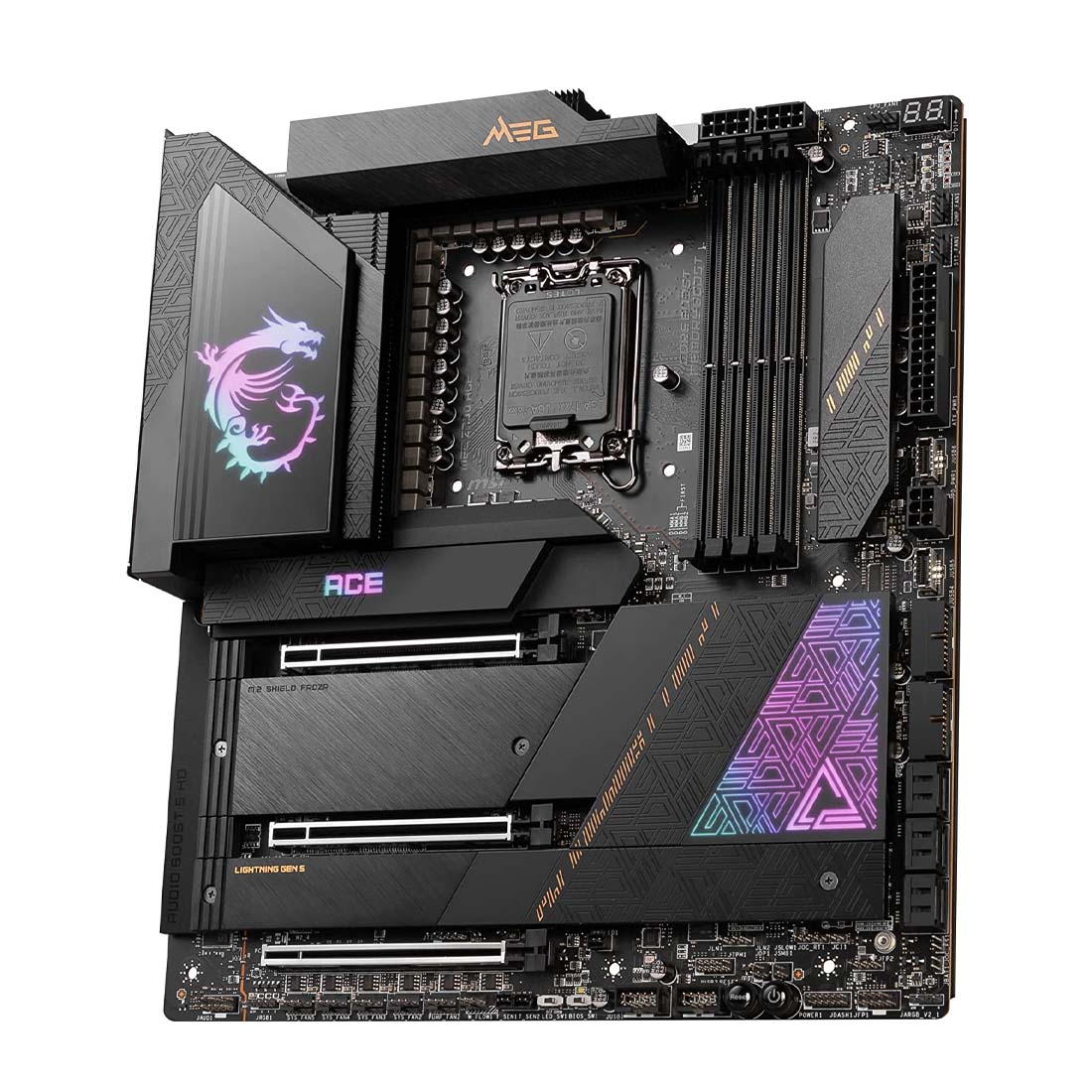

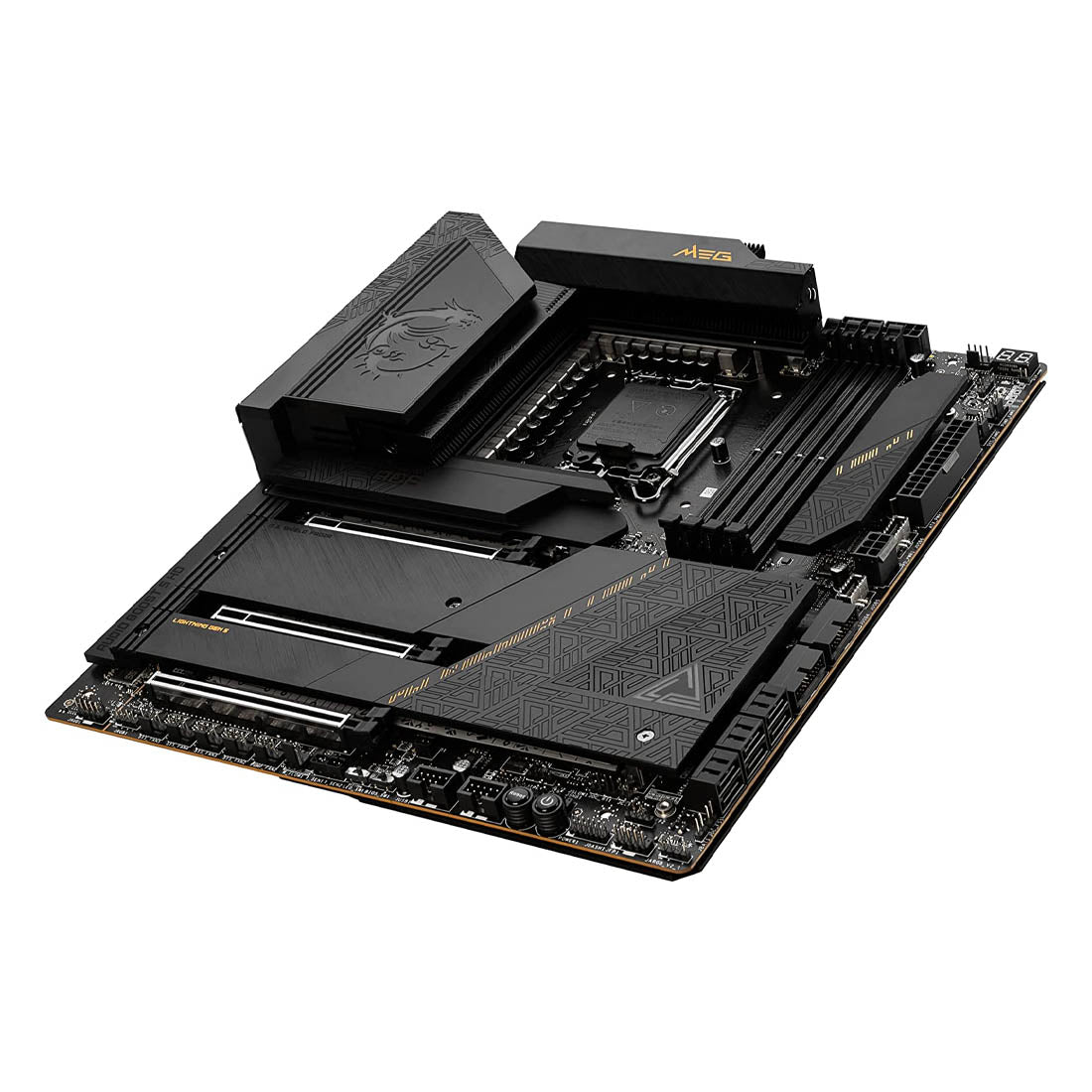

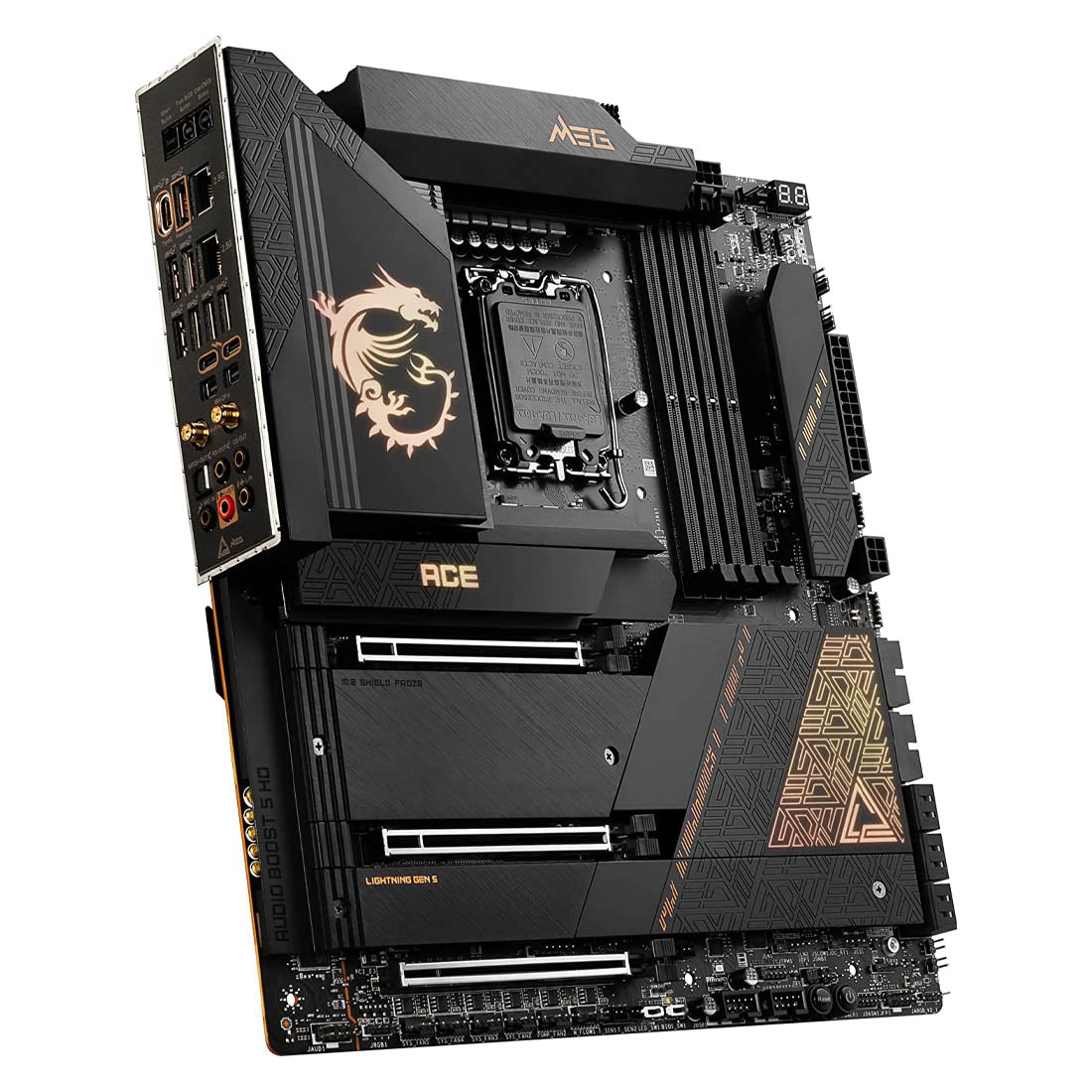

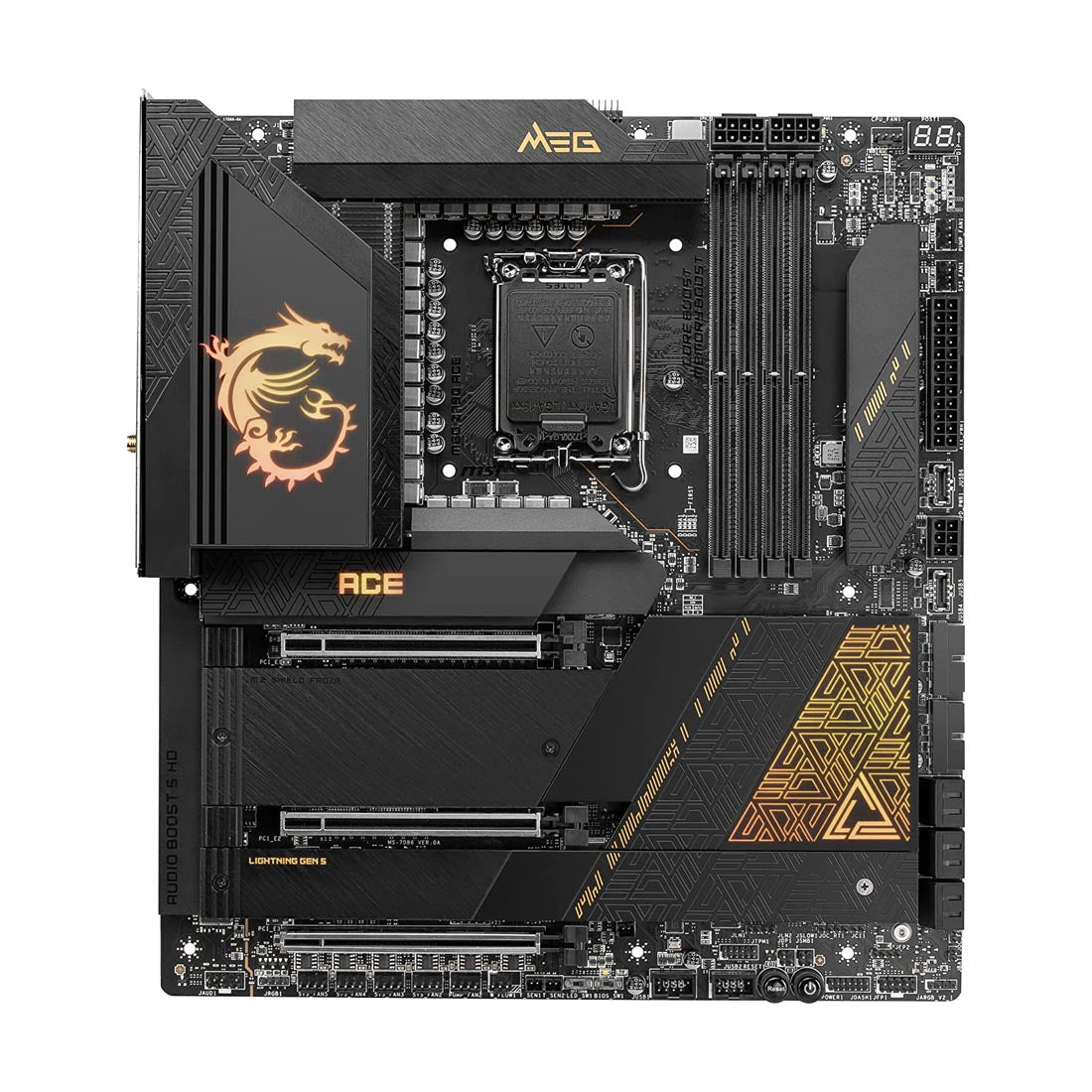

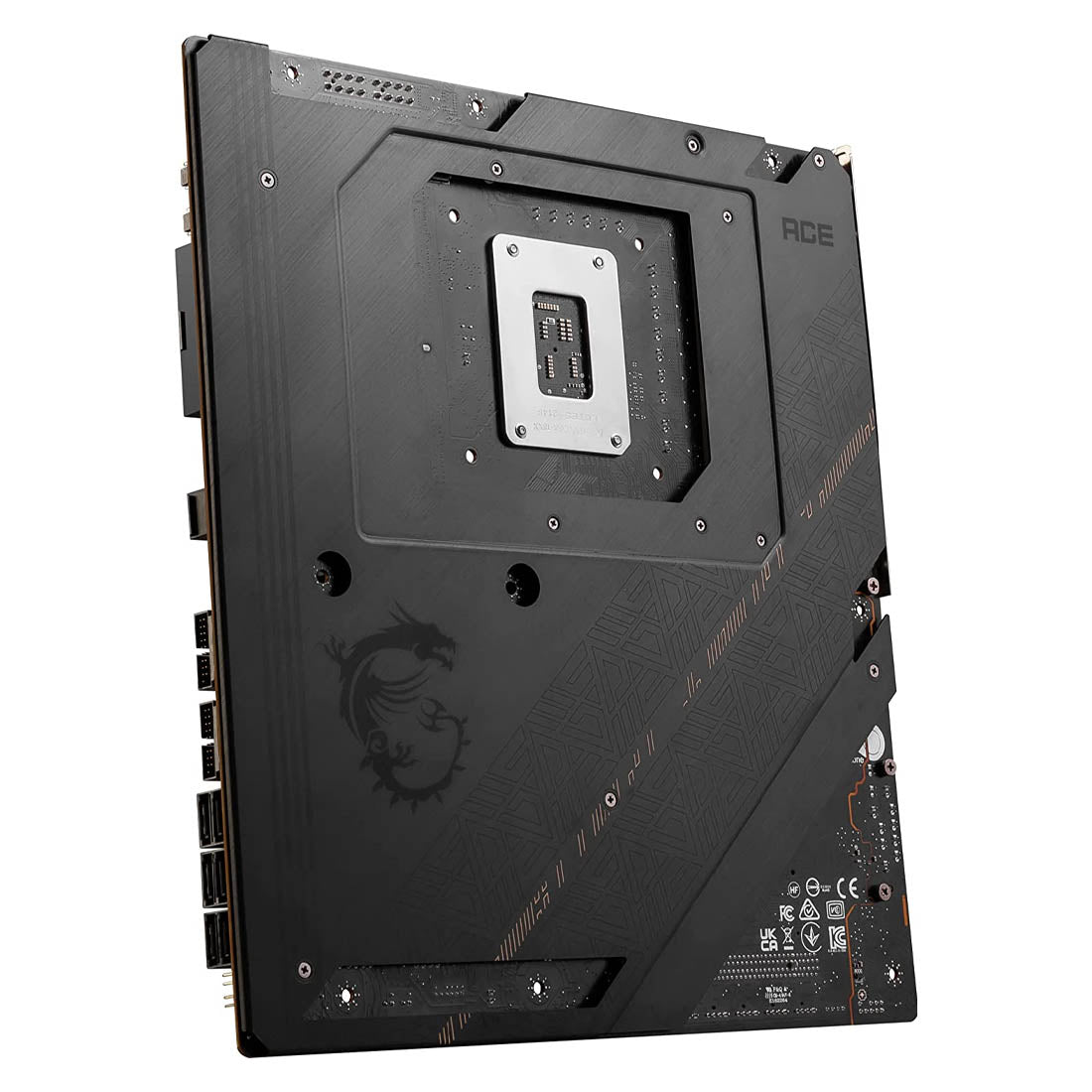

- MSI MEG Z790 ACE WIFI DDR4 motherboard is designed to support latest Intel Socket LGA 1700 for 13th Gen, 12th Gen Intel Core processors and Pentium Gold and Celeron Processors.
- The MSI Z790 motherboard is PCIe 5.0 Ready supporting up to 192GB DDR4 7800+MHz (OC) of memory and Intel Extreme Memory Profile 3.0(XMP). The DDR4 MSI motherboard support next gen PCIe 5.0 M.2 slots making it future proof.
- Enjoy extended connectivity with the next-gen technology of WIFI 6E, PCIe 4.0, Intel 2.5Gb Ethernet, USB 3.2 Gen 2 connector, Five M.2 slots and Three USB Type-C.
- The E-ATX motherboard comes with DIY Friendly features. The EZ Debug LED will indicate the source of the problem, so you know exactly where to look to get up and running again.
~section~
| Model | MSI MEG Z790 ACE E-ATX Motherboard |
| CPU Support | Supports 13th Gen, 12th Gen Intel Core Processors, Pentium Gold and Celeron Processors |
| CPU Socket | LGA 1700 |
| Chipset | Intel Z790 Chipset |
| Form Factor | E-ATX |
| Memory | 4x DDR4 memory slots, supporting up to 192GB 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz Supports Dual-Channel mode Supports Intel Extreme Memory Profile (XMP) |
| Expansion Slot | 3x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 5.0 supports up to x8 (From CPU) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) |
| Onboard Graphics | 1x Type-C DisplayPort |
| Onboard Thunderbolt | 2x Thunderbolt4 (USB-C) Ports |
| Storage | 5x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260 devices M.2_4 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280 devices M.2_5 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 22110/2280/2260 devices 6x SATA 6G |
| USB | 7x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Rear) |
| LAN | 2x Intel 2.5Gbps LAN |
| WIFI / Bluetooth | Intel Wi-Fi 6E, Bluetooth 5.3 |
| Audio | Realtek ALC4082 Codec 7.1-Channel High-Definition Audio |
| BackPanel Ports | 1 x DisplayPort 1 x HDMI 2.1 1 x 2.5G LAN 2 x Wi-Fi / Bluetooth 1 x Keyboard / Mouse 4 x USB 2.0 2 x USB 3.2 Gen 2 10Gbps (Type-A) 1 x USB 3.2 Gen 2 10Gbps (Type-C) 5 x Audio Jacks 1 x Optical S/PDIF Out |
| Internal I/O Connectors | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Front Type-C Quick Charge Connector(PD_PWR1) 1x CPU Fan 2x Pump Fan 5x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Water Flow connector 1x Slow Mode Booting Jumper(JSLOW) 1x Front Audio (JAUD) 2x Thermal Sensor connectors(T_SEN) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports 2x USB 3.2 Gen 2×2 Type C ports V-check point |
| LED Features | 1x EZ LED Control switch 4x EZ Debug LED 1x 2-Digit Debug Code LED |
| Operating System | Support for Windows 11 64-bit, Windows 10 64-bit |
| Dimension | E-ATX 277mm x 304.8mm |
| Warranty | 3 Years Brand Warranty |

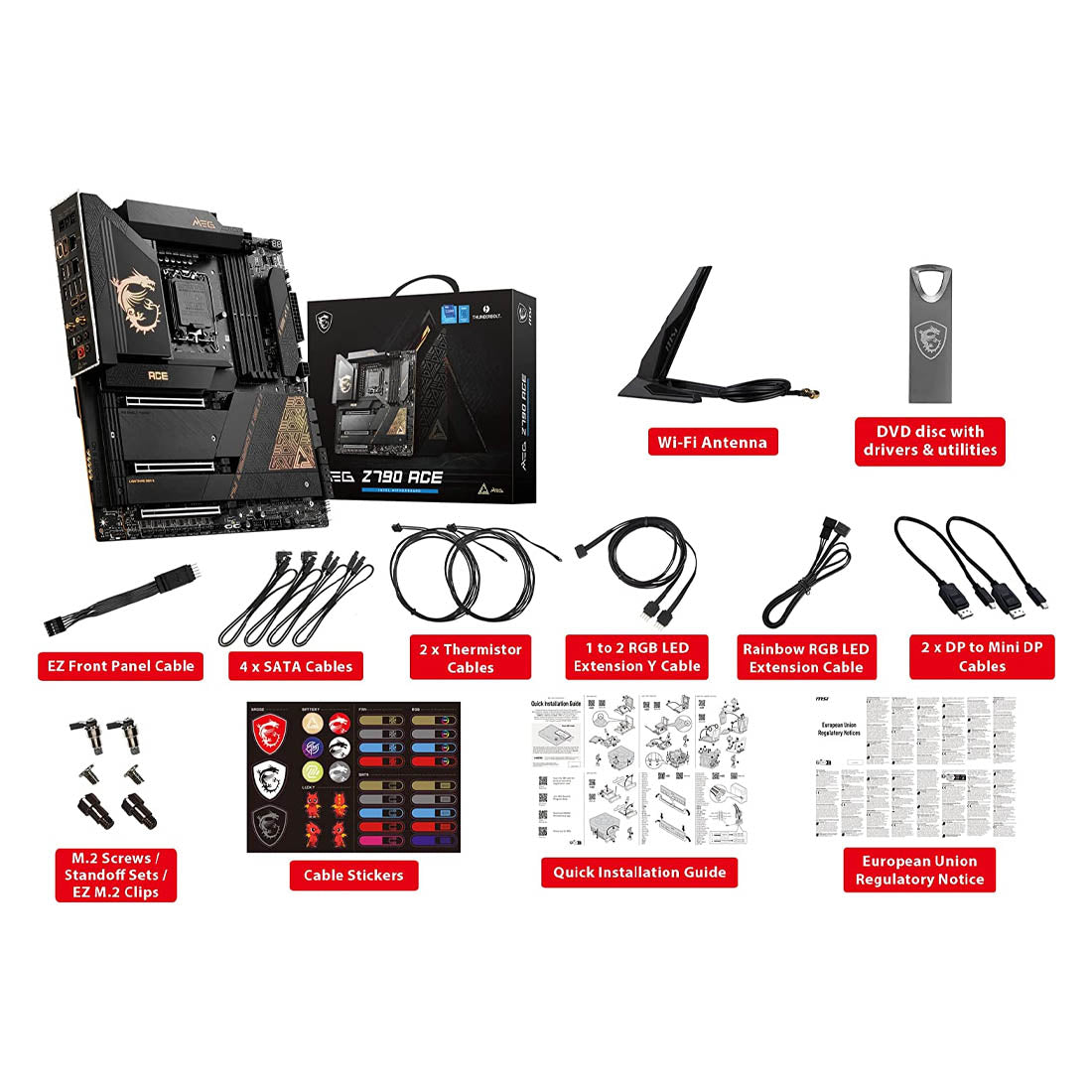

| Package Contents | MEG Z790 ACE E-ATX Motherboard User Manual Installation Guide |
