Description
- Unleash Gaming Potential: Elevate your gaming experience with the NVIDIA® GeForce RTX™ 5060 Ti, designed to deliver stunning visuals and exceptional AI performance.

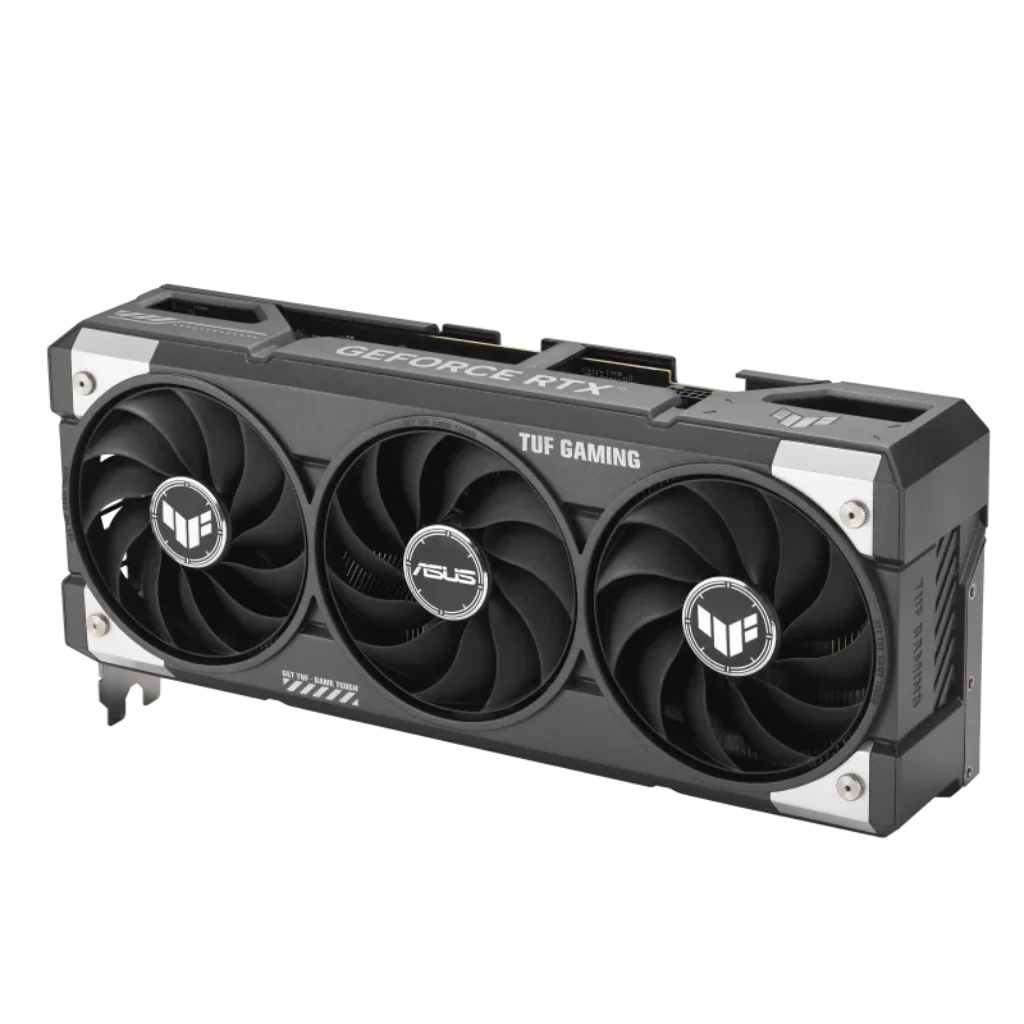

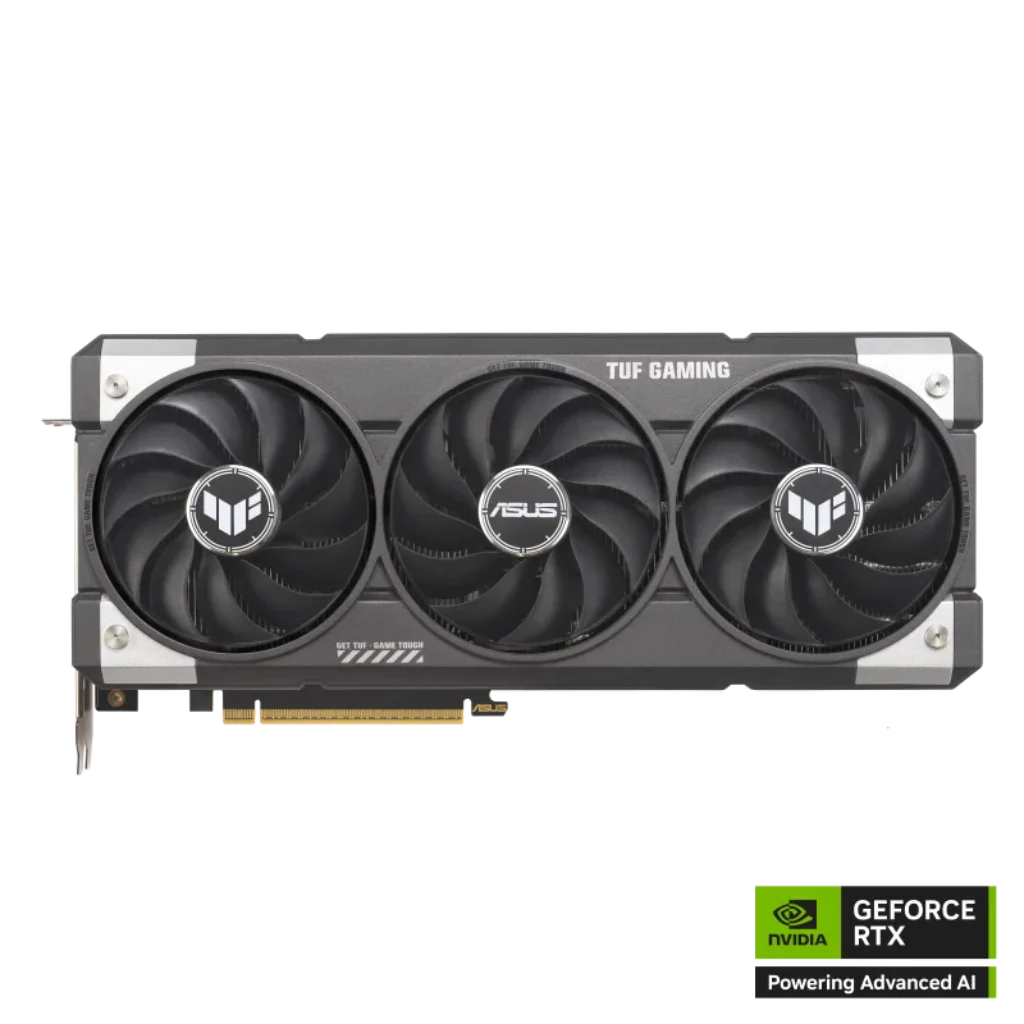

- Whisper-Quiet Cooling: Enjoy intense gaming sessions without overheating, thanks to three Axial-tech fans with dual-ball bearings that ensure superior airflow and long-lasting durability.
- Compact & Versatile: The 3.1-slot form factor is SFF-ready, making it the perfect fit for small-form-factor builds without compromising on performance.

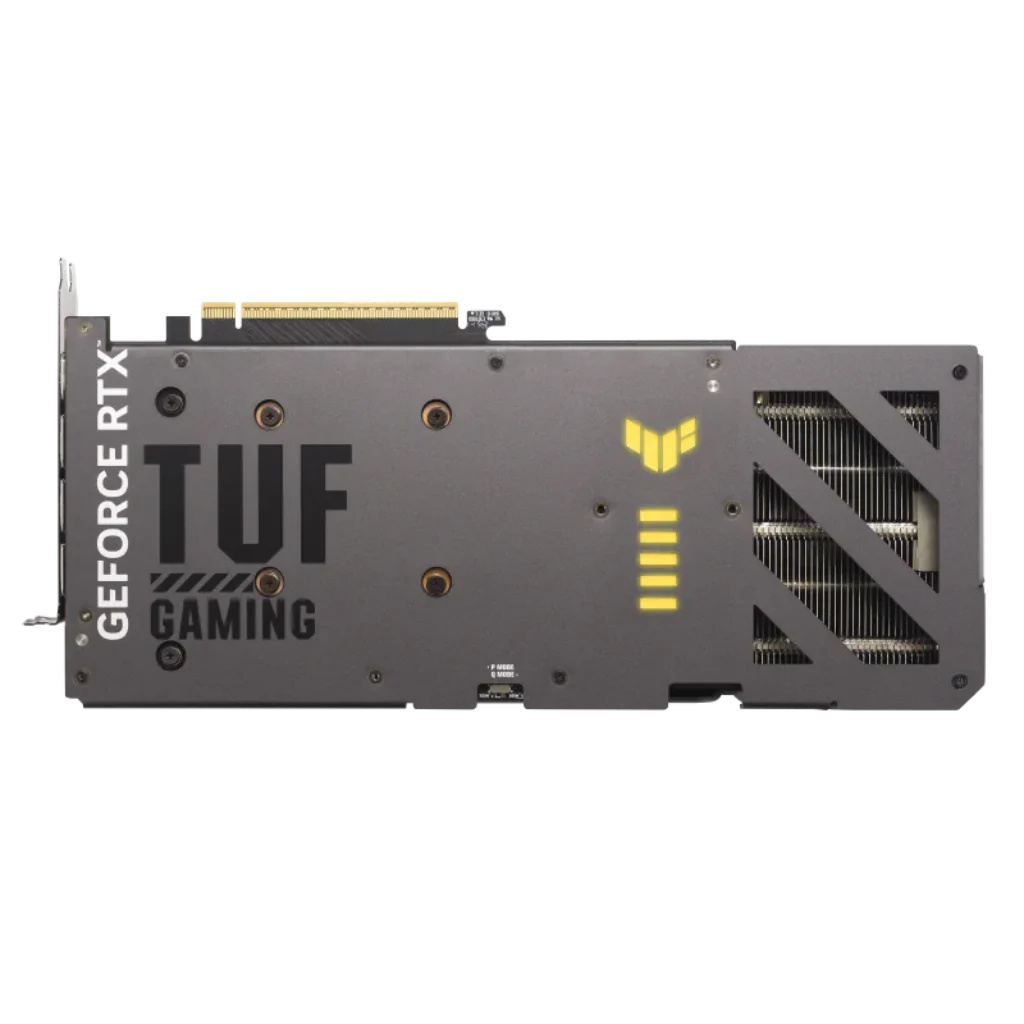

- Built to Last: A vented backplate and stainless steel bracket enhance heat dissipation and structural integrity, ensuring longevity and reliability.
- Multi-Display Support: Expand your gaming setup with support for up to 4 displays, featuring cutting-edge HDMI 2.1b and DisplayPort 2.1b outputs.
High Performance: Powered by the NVIDIA® GeForce RTX™ 5060 Ti, this graphics card offers an incredible AI performance of 785 TOPs and boasts 4608 CUDA cores, allowing for smooth gameplay and breathtaking graphics in the latest titles.
Superior Cooling: Equipped with three Axial-tech fans, this card guarantees enhanced airflow while maintaining whisper-quiet operation. The dual-ball bearings contribute to the fans’ durability, ensuring your system stays cool even during the most intense gaming sessions.
Compact Design: With a 3.1-slot form factor, this GPU is SFF-ready, perfectly designed to fit into smaller builds without sacrificing performance or power.
Robust Build: The inclusion of a vented backplate and a stainless steel bracket not only enhances structural rigidity but also improves heat dissipation, making this graphics card a reliable choice for long gaming hours.

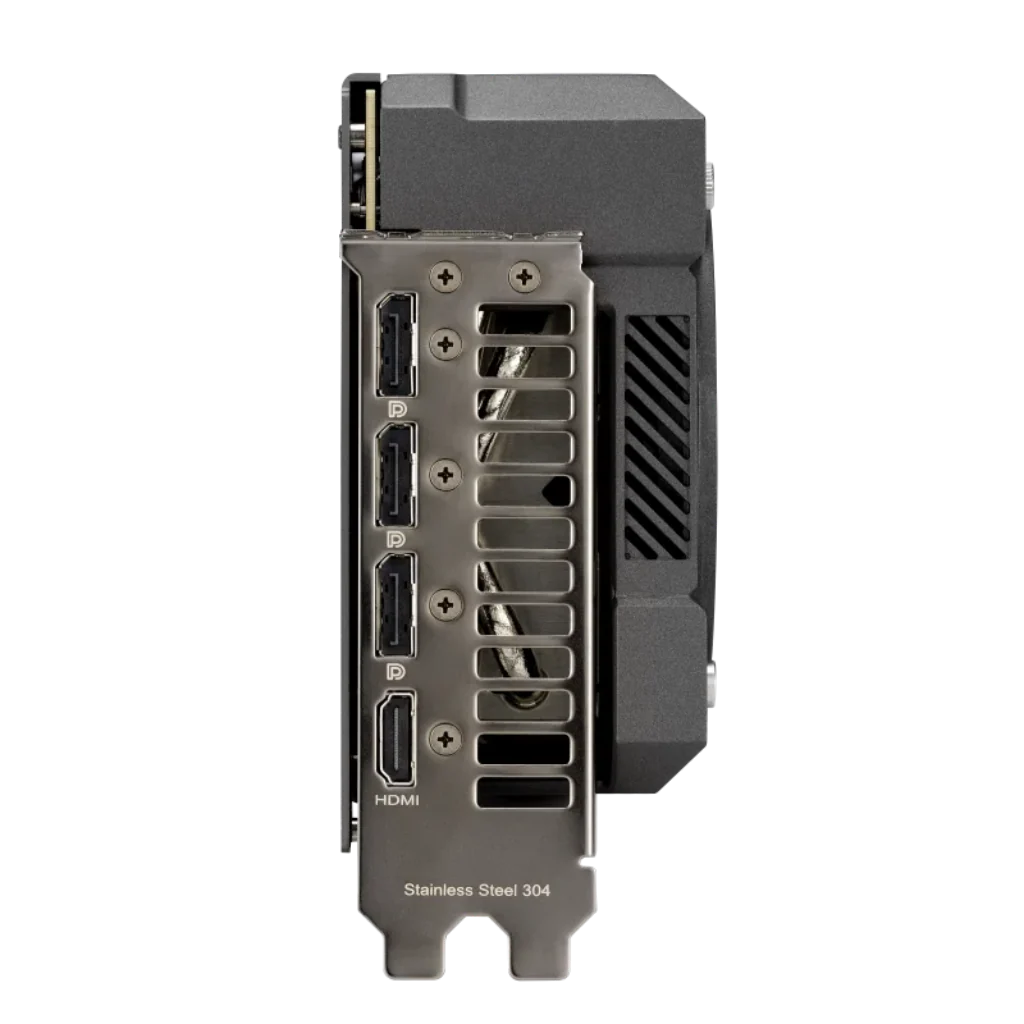

Connectivity: Enjoy the flexibility of connecting up to 4 displays with a combination of 1 HDMI 2.1b and 3 DisplayPort 2.1b outputs, perfect for immersive multi-monitor setups.
| Model | TUF-RTX5060TI-O16G-GAMING |
| Graphic Engine | NVIDIA® GeForce RTX™ 5060 Ti |
| AI Performance | 785 TOPs |
| Bus Standard | PCI Express 5.0 |
| OpenGL | OpenGL®4.6 |
| Video Memory | 16GB GDDR7 |
| Engine Clock |
OC mode: 2692MHz Default mode: 2662MHz (Boost Clock) |
| CUDA Core | 4608 |
| Memory Speed | 28 Gbps |
| Memory Interface | 128-bit |
| Resolution | Digital Max Resolution 7680 x 4320 |
| Interface | Yes x 1 (Native HDMI 2.1b) Yes x 3 (Native DisplayPort 2.1b) HDCP Support Yes (2.3) |
| Maximum Display Support | 4 |
| NVlink/ Crossfire Support | No |
| Accessories |
1 x Speedsetup Manual 1 x TUF Graphics Card Holder 1 x TUF Velcro Hook & Loop 1 x TUF Gaming Certificate 1 x Thank You Card 1 x Adpater Cable (1 to 2) |
| Software | ASUS GPU Tweak III & MuseTree & GeForce Game Ready Driver & Studio Driver: please download all software from the support site. |
| Dimensions | 302 x 133.5 x 62mm |
| Recommended PSU | 550W |
| Power Connectors | 1 x 16-pin |
| Slot | 3.1 slot |
| AURA SYNC | ARGB |
| Warranty | 3-year limited warranty*** |
