Description
High Performance: Equipped with NVIDIA® GeForce RTX™ 5060 Ti, it offers AI performance of 767 TOPs and 4608 CUDA cores.

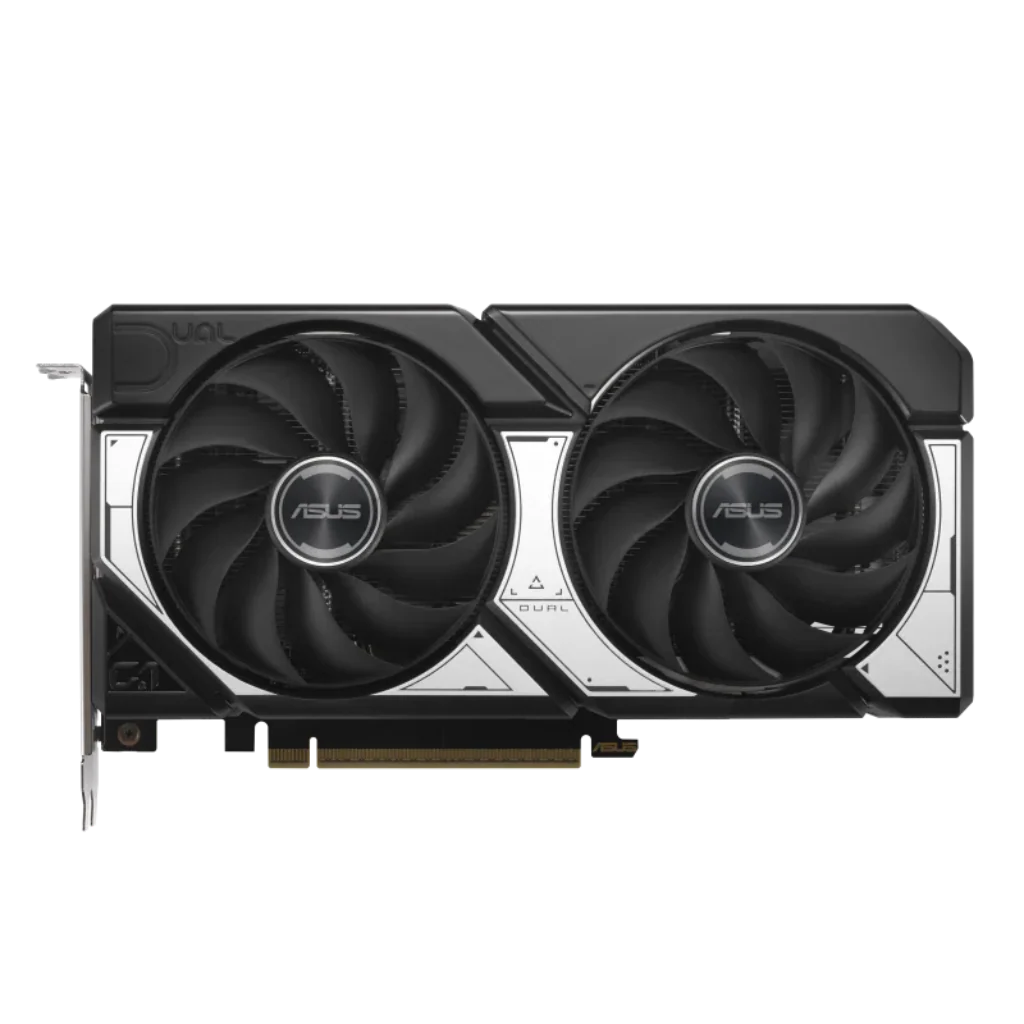

Advanced Cooling: Features two Axial-tech fans and 0dB technology for optimized airflow and quieter operation.
Compact Design: The 2.5-slot form factor ensures compatibility with smaller builds while maintaining powerful performance.

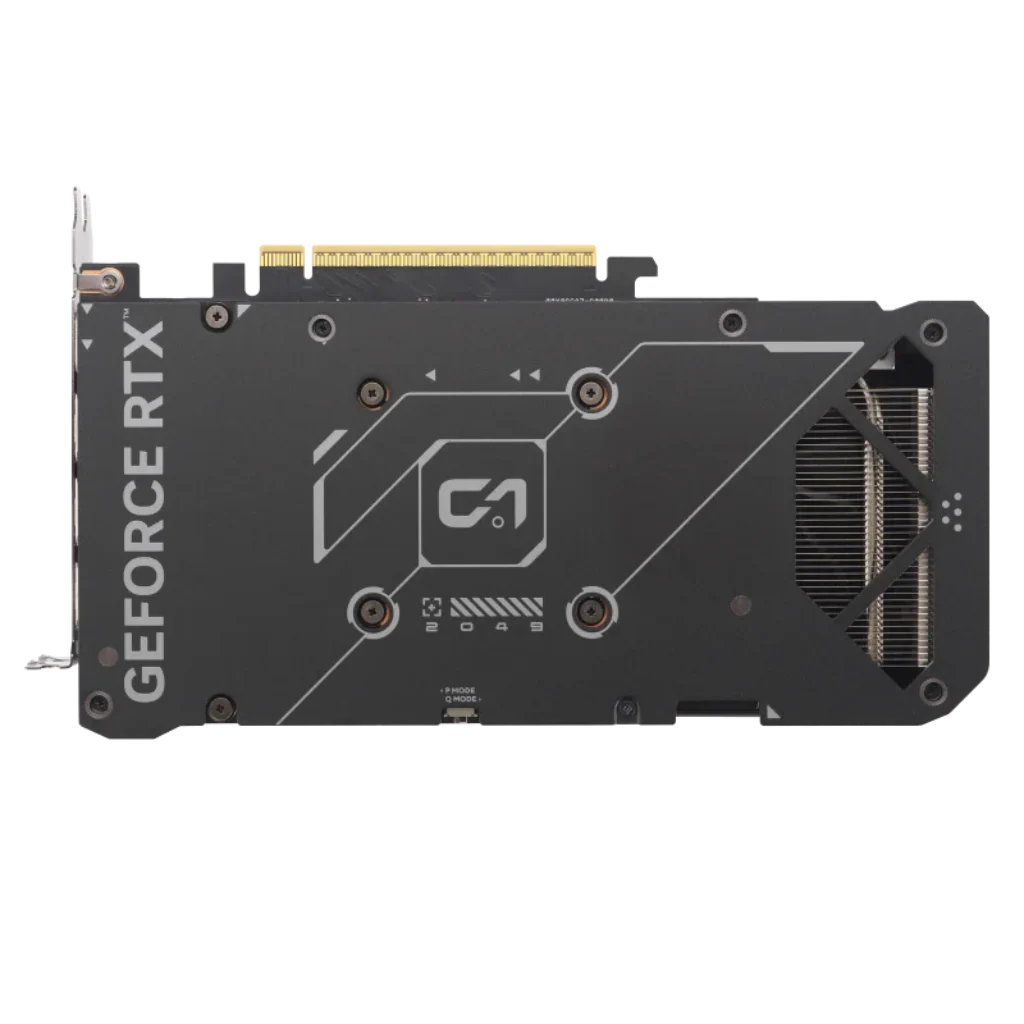

Robust Build: Includes a vented backplate for enhanced heat dissipation and a stainless steel bracket for increased durability.

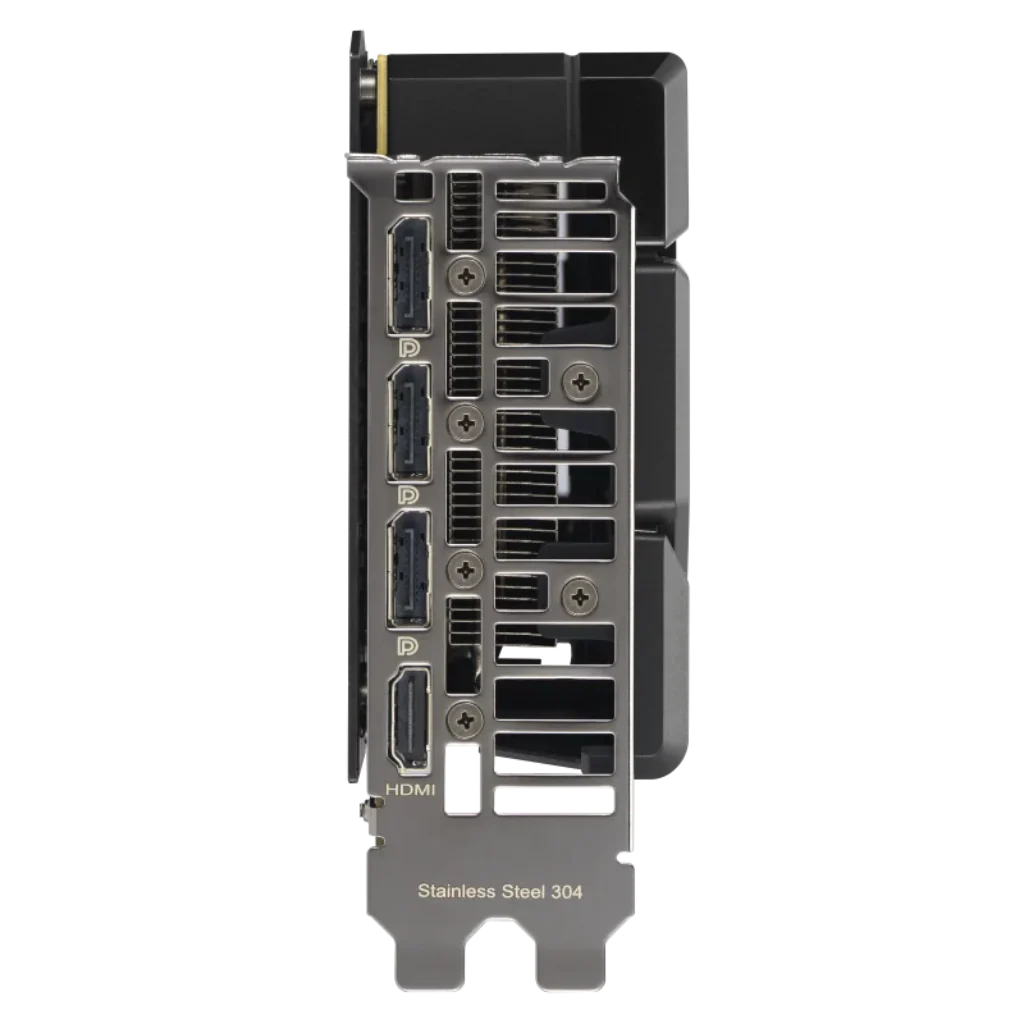

Connectivity: Supports up to 4 displays with 1 HDMI 2.1b and 3 DisplayPort 2.1b outputs.
| Model | DUAL-RTX5060TI-O8G |
| Graphic Engine | NVIDIA® GeForce RTX™ 5060 Ti |
| AI Performance | 767 TOPs |
| Bus Standard | PCI Express 5.0 |
| OpenGL | OpenGL®4.6 |
| Video Memory | 8GB GDDR7 |
| Engine Clock | OC mode: 2632MHz Default mode: 2602MHz (Boost Clock) |
| CUDA Core | 4608 |
| Memory Speed | 28 Gbps |
| Memory Interface | 128-bit |
| Resolution | Digital Max Resolution 7680 x 4320 |
| Interface | Yes x 1 (Native HDMI 2.1b) Yes x 3 (Native DisplayPort 2.1b) HDCP Support Yes (2.3) |
| Maximum Display Support | 4 |
| NVlink/ Crossfire Support | No |
| Accessories | 1 x Speedsetup Manual 1 x Thank You Card |
| Software | ASUS GPU Tweak III & MuseTree & GeForce Game Ready Driver & Studio Driver: please download all software from the support site. |
| Dimensions | 229 x 120 x 50mm |
| Recommended PSU | 550W |

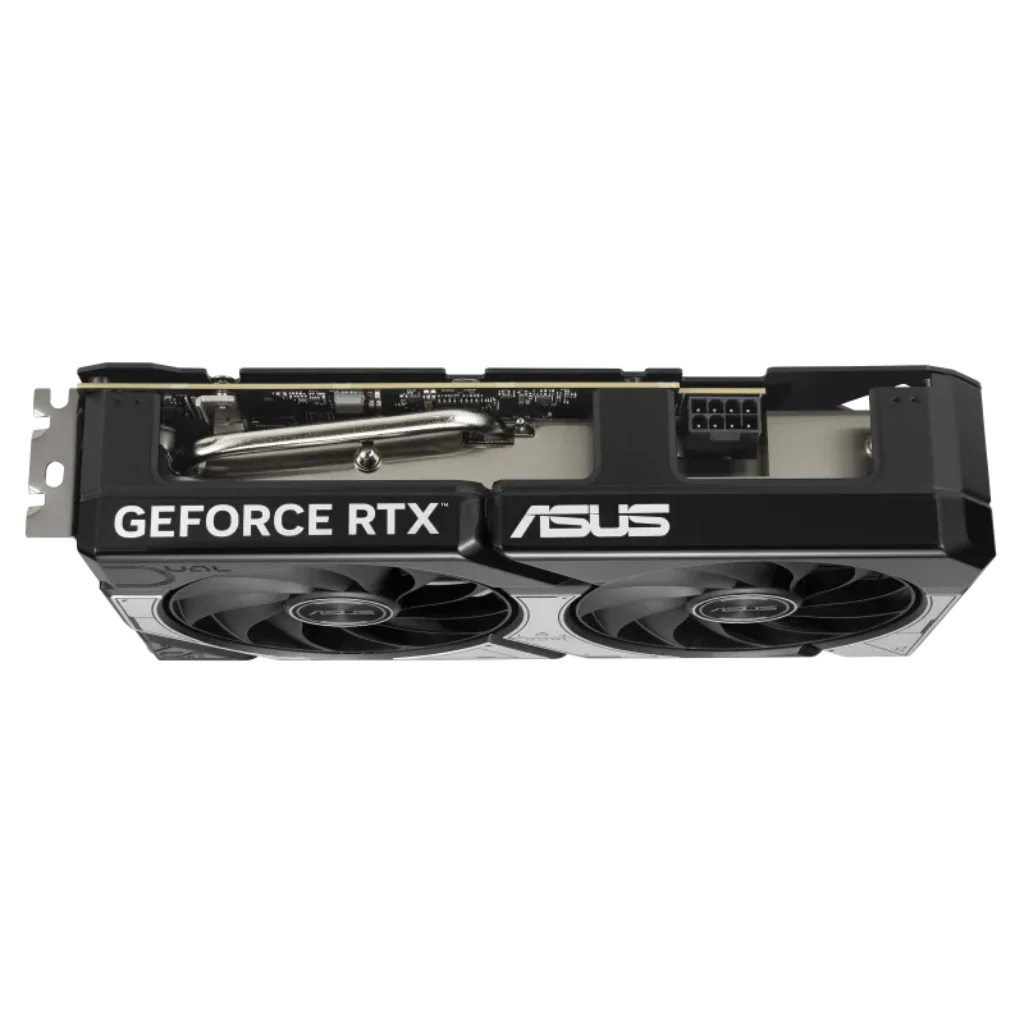

| Power Connectors | 1 x 8-pin |
| Slot | 2.5 Slot |
| SFF Ready | Compatible |
| Warranty | 3-year limited warranty*** |
